Characteristics
- Technology
- impeller
- Fluid
- water
- Operation
- with electric motor
- Priming
- self-priming
- Mobility
- stationary, mobile
- Domain
- industrial
- Voltage
- 380 V, 220 V
- Protection level
- IP55

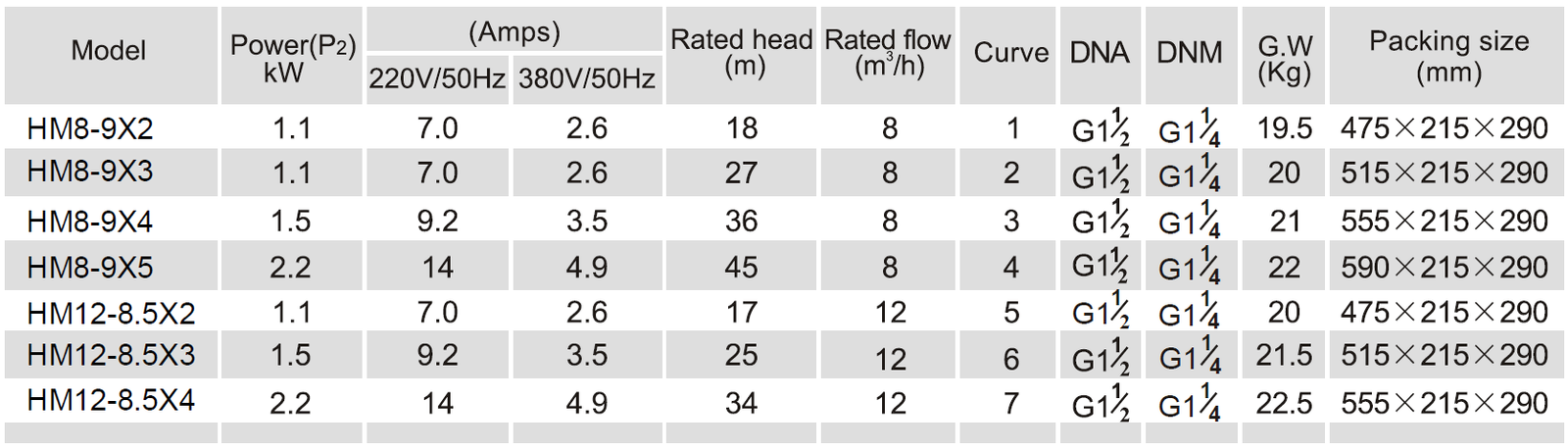

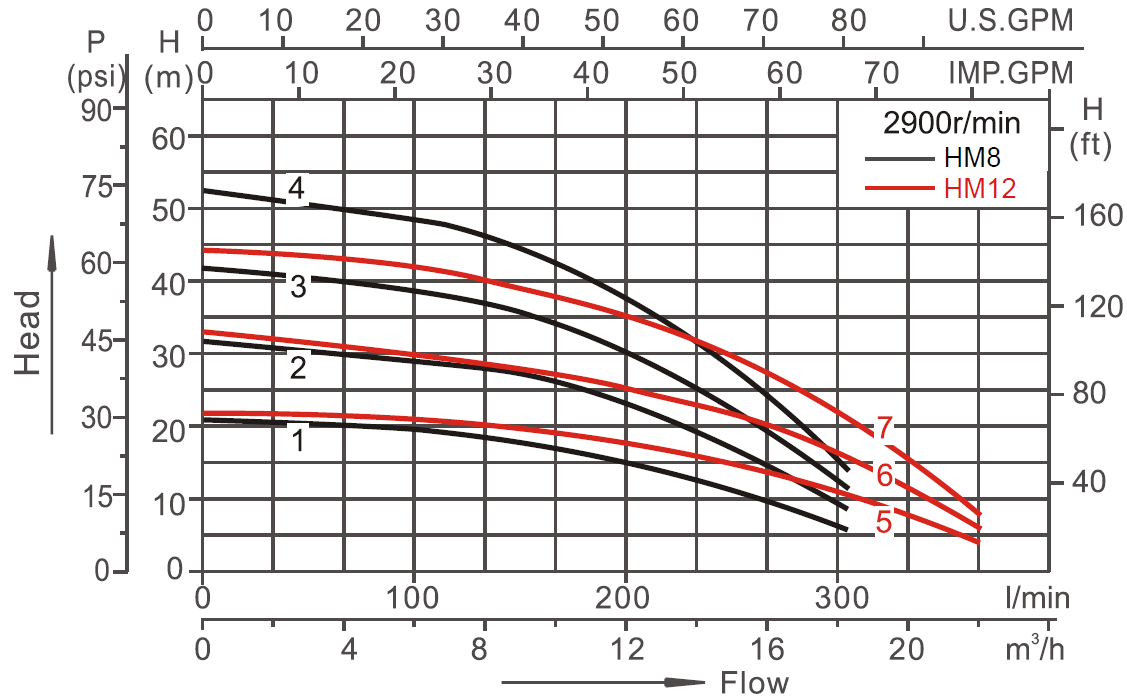

- Flow
- 8 m³/h, 12 m³/h
(282.51733 ft³/h, 423.776 ft³/h)
- Pressure
- 1 MPa
- Head
- Max.: 45 m
(147’07” )Min.: 18 m
(59’00” )
- Power
- 1.1 kW, 1.5 kW, 2.2 kW
(1.5 hp, 2.04 hp, 2.99 hp)
- Fluid temperature
- Max.: 50 °C
(122 °F)Min.: 0 °C
(32 °F)

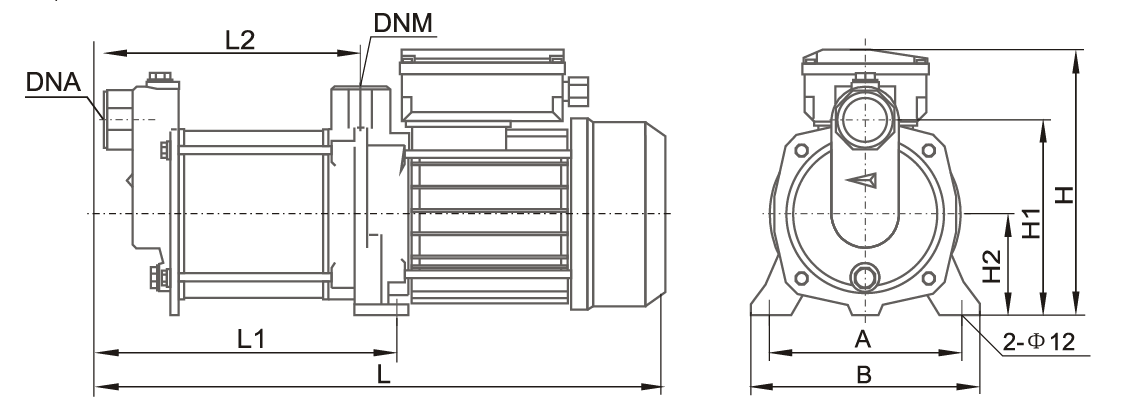

- Length
- Max.: 513 mm
(20 in)Min.: 436 mm
(17 in)
- Width
- 152 mm
(5.98 in)
- Height
- 207 mm, 225 mm
(8.15 in, 8.86 in)
- Weight
- Max.: 22.5 kg
(49.6 lb)Min.: 19.5 kg
(42.99 lb)
