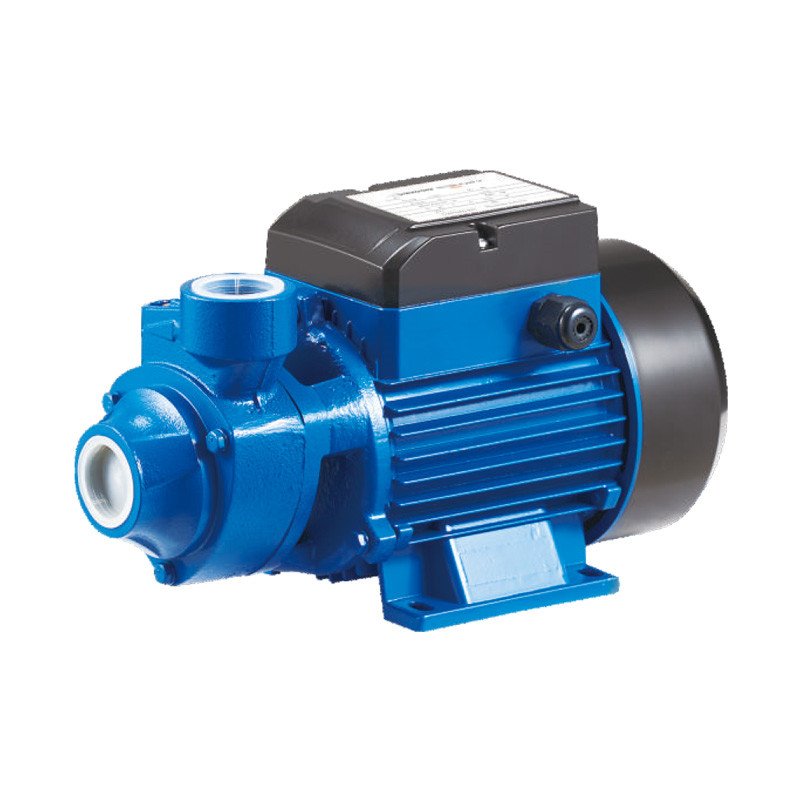

Peripheral pump QB series

MODEL		POWER(P2)		INLET/ OUTLET	MAX.FLOW (L/min)	MAX.HEAD (m)	MAX.SUCT (m)	G.W (kg)	PACKING DIMENSION/UNIT (mm)	QTY/20′ GP (UNIT)
SINGLE PHASE	THREE PHASE	KW	HP
QB-60	QB-60T	0.37	0.5	1″×1″	35	35	8	34.5	490×310×390/6pcs	3240
QB-70	QB-70T	0.55	0.75	1″×1″	40	50	8	8.8	330×180×220	1900
QB-80	QB-80T	0.75	1	1″×1″	50	60	8	10.5	350×190×220	1700
QB-60B	QB-60BT	0.37	0.5	1″×1″	35	35	8	27	485×295×375/6pcs	3240

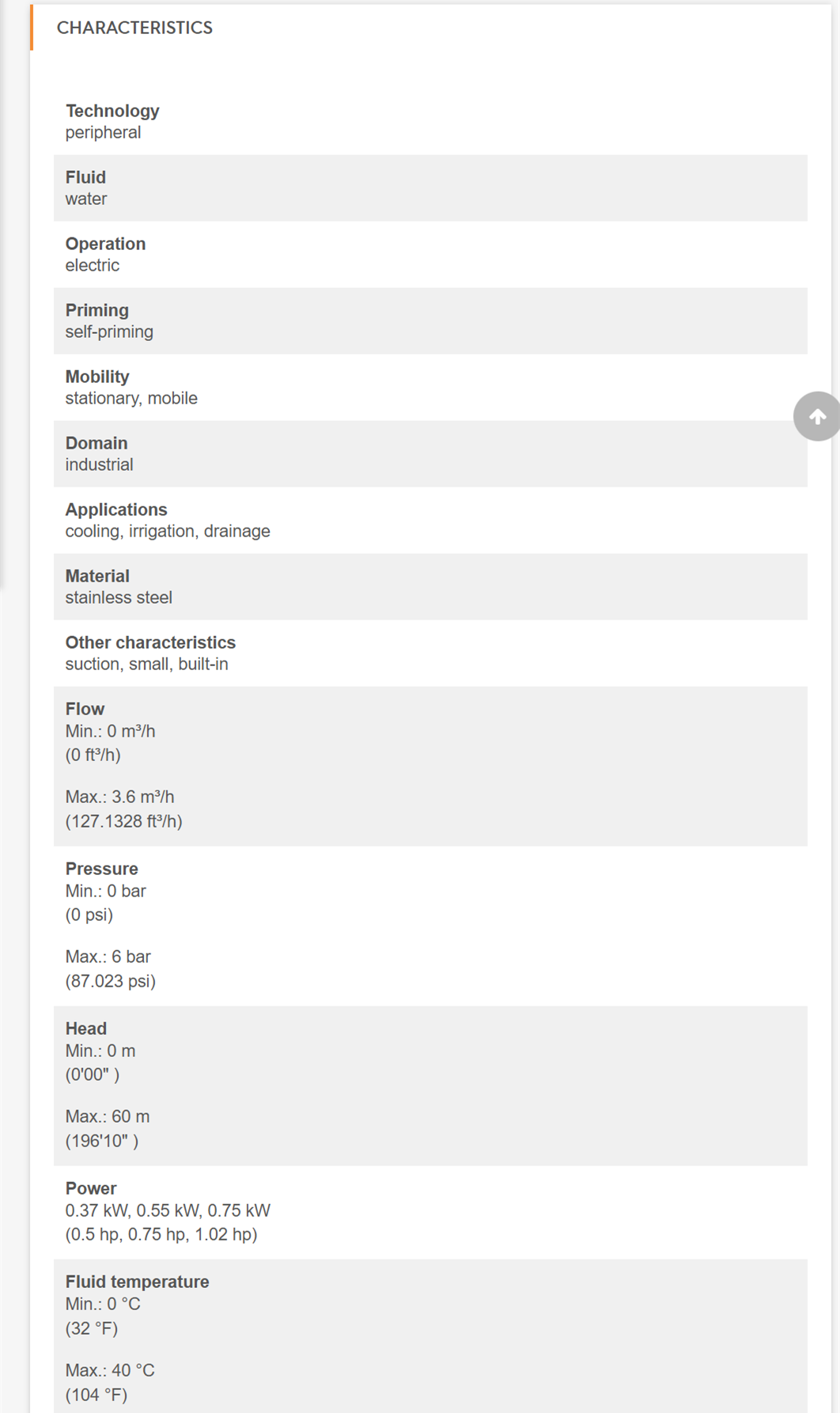

Characteristics
Technology
peripheral
Fluid
water
Operation
electric
Priming
self-priming
Mobility
stationary, mobile
Domain
industrial
Applications
cooling, irrigation, drainage
Material
stainless steel
Other characteristics
suction, small, built-in
Flow
Min.: 0 m³/h
(0 ft³/h)

Max.: 3.6 m³/h
(127.1328 ft³/h)

Pressure
Min.: 0 bar
(0 psi)

Max.: 6 bar
(87.023 psi)

Head
Min.: 0 m
(0’00” )

Max.: 60 m
(196’10” )

Power
0.37 kW, 0.55 kW, 0.75 kW
(0.5 hp, 0.75 hp, 1.02 hp)

Fluid temperature
Min.: 0 °C
(32 °F)

Max.: 40 °C
(104 °F)

Peripheral Pumps QB

Application Limits

◎ Suction head up to 8m
◎ Liquid temperature up to +40℃
◎ Ambient temperature up to +40℃
◎ Max. Working pressure: 6bar
◎ Voltage fluctuation should not exceed 10% of rated value.
◎ pH: 6.5 to 8.5

Application Fields

◎ Suitable for transferring water without abrasive particles or other liquid whose properties are similar to water.
◎ Widely used in garden irrigation, vegetable greenhouse water supply, breeding industry water supply and drainage, various corollary equipment, etc.

Features

◎ Small size,high pressure
◎ Easy installation & maintenance
◎ Stainless Steel Inserts

Motor

◎ Single-Phase 220V/50Hz or 110V/50Hz
◎ Motor: 2 pole asynchronous motor, copper wires, built-in thermal protector, fully closed fan cooling, continuous running
◎ Protection: IP44
◎ Insulation: Class B
