Pressure Controller

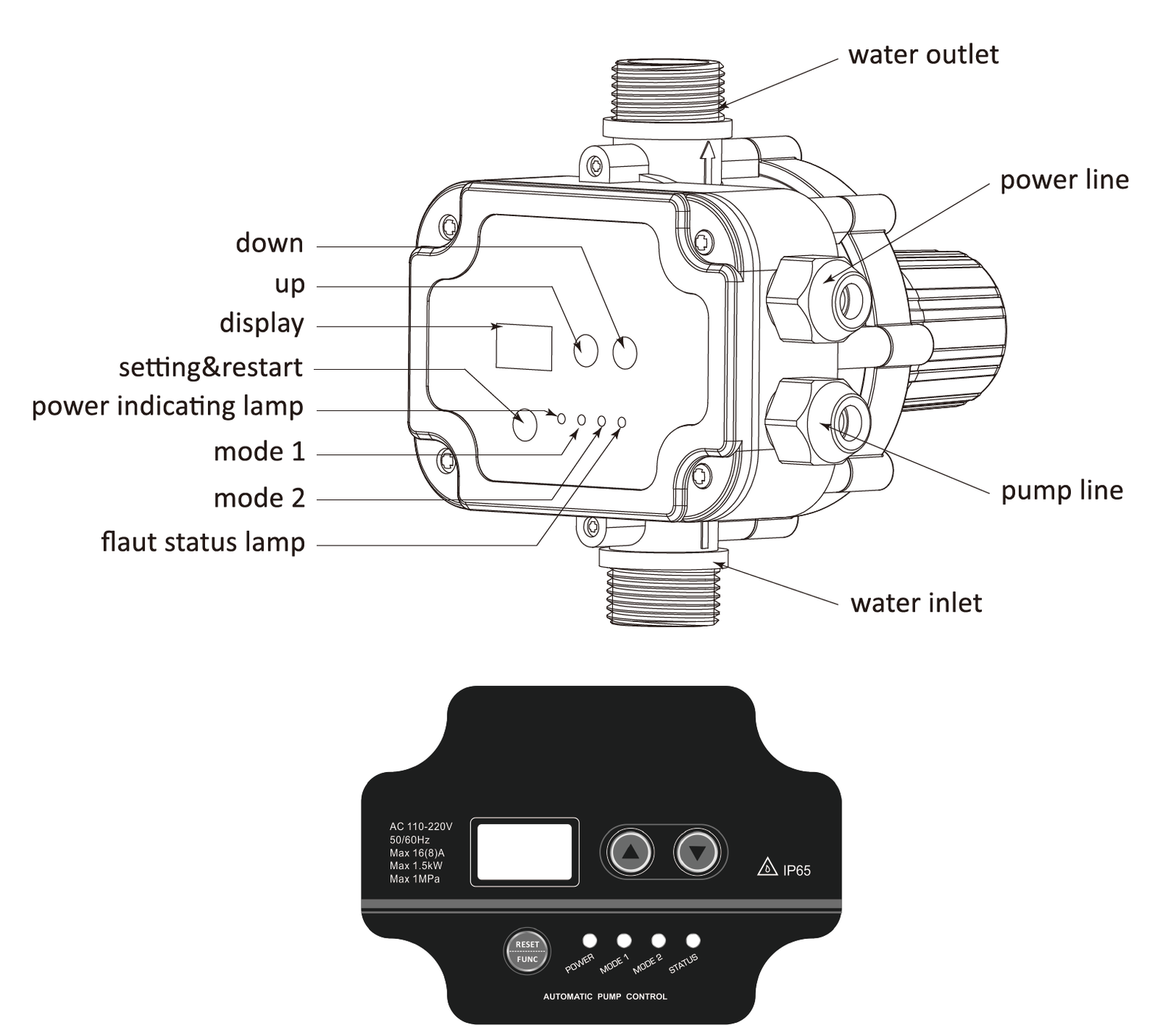

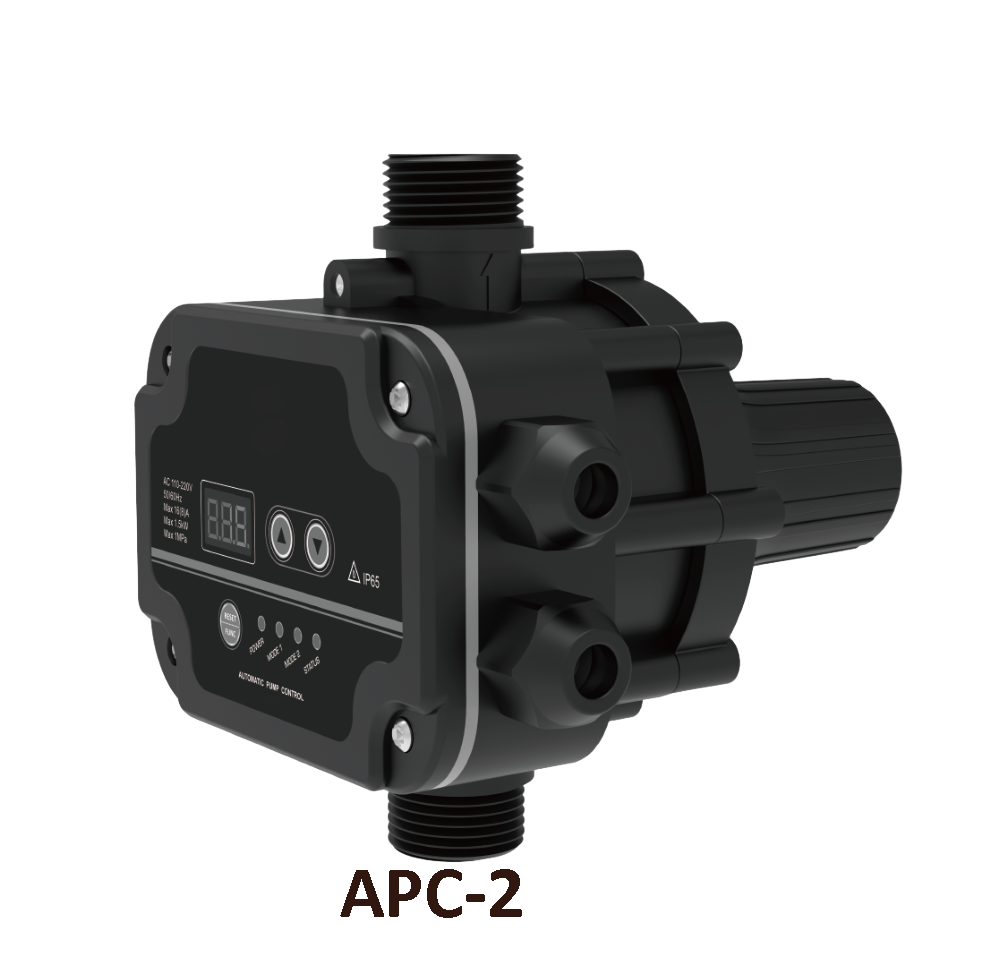

APC-2 INTELLIGENT DIGITAL  PUMP CONTROLLER

OPERATION LIMIT

1. Rated voltage: 110-220V
2. Frequency: 50/60Hz
3. Maximum power/Maximum working current: l.5kW / 16(8)A
4. Maximum working pressure: 10 bar
5. Start pressure/stop pressure adjusting range: 0.5-4.Sbar/1-8bar
6. Minimum start flow: 1 (L/min)
7. Factory default start/stop pressure: 1.5 bar/3.Sbar
8. Water Inlet/outlet thread: Rl”
9. Maximum environment temperature: 60°C
10. IP class: IP 65

FEATURES:

APC-2 is a type of electronic pressure controller configured with digital display, customers can set the start/stop pressure value via the control faceplate, which can intelligently detect the water pressure and flow in the pipeline, to realize the start/stop of the water pump. This controller can replace the traditional pressure tank, which can be used for no-tower water supply system.

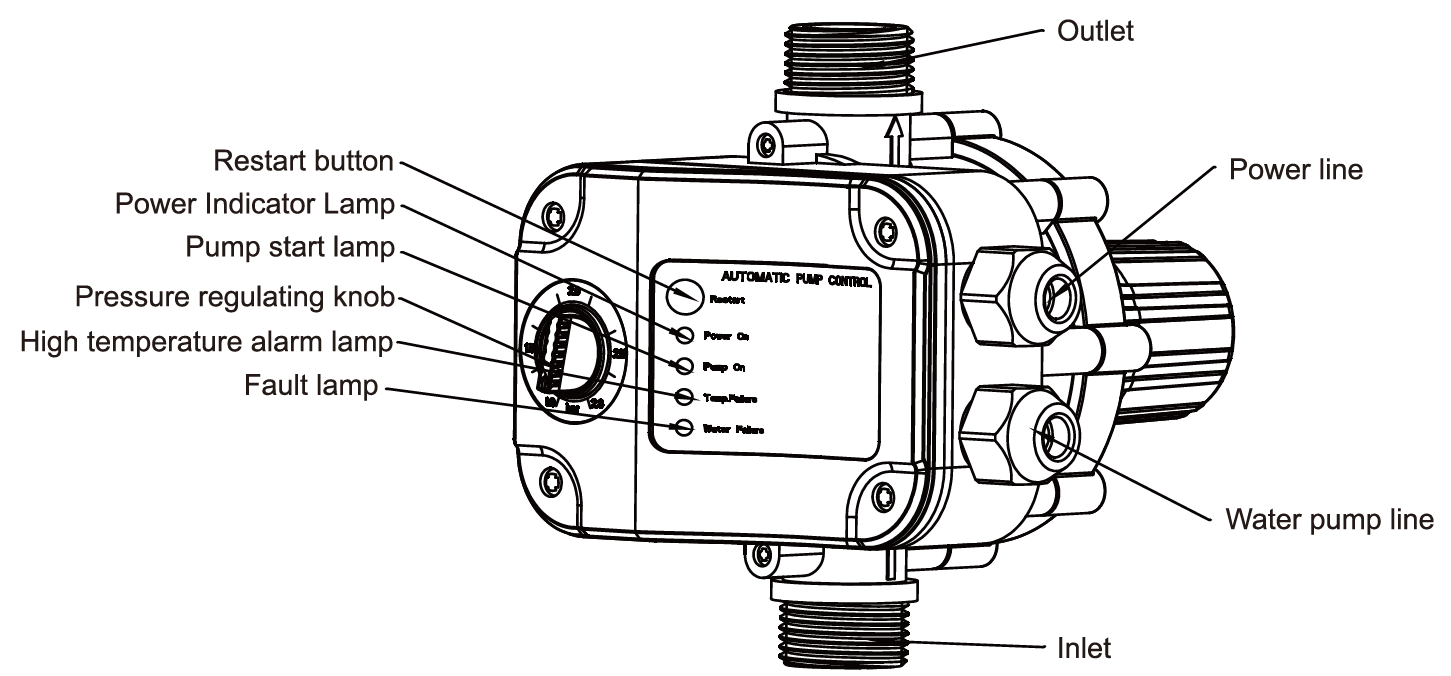

APC-1  MECHANICAL ADJUSTABLE PUMP CONTROLLER

OPERATION LIMIT

1. Voltage: AC 220V
2. Frequency: 50/60Hz
3. Maximum power/Maximum working current: l.5kW / 10A
4. Maximum working pressure: 10 bar
5. Start pressure range: 1-8bar
6. Maximum environment temperature: 60°C
7. IP class: IP 65

FEATURES:

1. Used for the auto-control of the supplying system of electro-pump to replace theextensive water of tank in electronic traditional supplying system.
2. The model of the eletronic control can offset frequent start-ups of the pump due to ny mior leakage. The pump can start instantly when the system pressure drops to the set starting pressure with the quick opening of the outlet.
3. The knob can set the stating pressure(1.0-2.8bar) of the pump on the panel.
4. Open a tap and the pump will keep running if the outlet flow reaches 60-160L/h.
